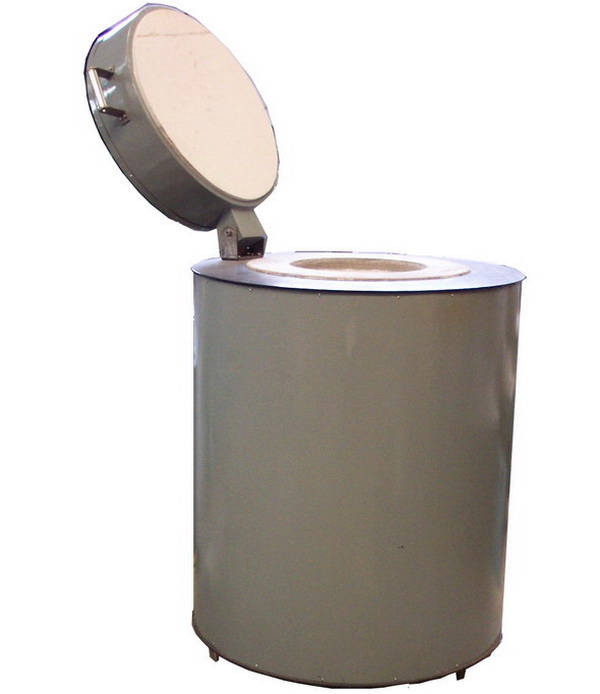

Home » Products » ... » ... » 坩埚电阻炉


[View In Large]	[View In Large]

Technology Data:

Model	Inner Dimensions Ф*L mm	Voltage V	Power kw	Temp Rise min	Power Loss kw	Outer Dimensions LWH mm	Weight kg
SG2-1.5-10	φ100*150	220/1φ	1.5	≤50	≤0.7	350X310X450	21
SG2-3-10	φ150X200	220/1φ	3	≤50	≤0.9	430X410X580	70
SG2-5-10	φ200*250	220/1φ	5	≤50	≤1.2	530X480X680	80
SG2-7.5-10	φ250X300	380/3φ	7.5	≤60	≤1.6	600X530X700	100
SG2-12-10	φ350*400	380/3φ	12	≤70	≤2.0	700X630X800	120
SG2-15-10	φ300X500	380/3φ	15	≤80	≤2.8	650X530X900	135
SG2-1.5-12	φ100*150	220/1φ	1.5	≤70	≤0.9	350X310X450	21
SG2-3-12	φ150X200	220/1φ	3	≤70	≤1.2	430X410X580	70
SG2-5-12	φ200*250	220/1φ	5	≤70	≤1.6	530X480X680	80
SG2-7.5-12	φ250X300	380/3φ	7.5	≤80	≤2.0	600X530X700	100
SG2-12-12	φ350*400	380/3φ	12	≤90	≤2.8	700X630X800	120
SG2-15-12	φ300X500	380/3φ	15	≤100	≤3.6	650X530X900	135
