| Purpose: |

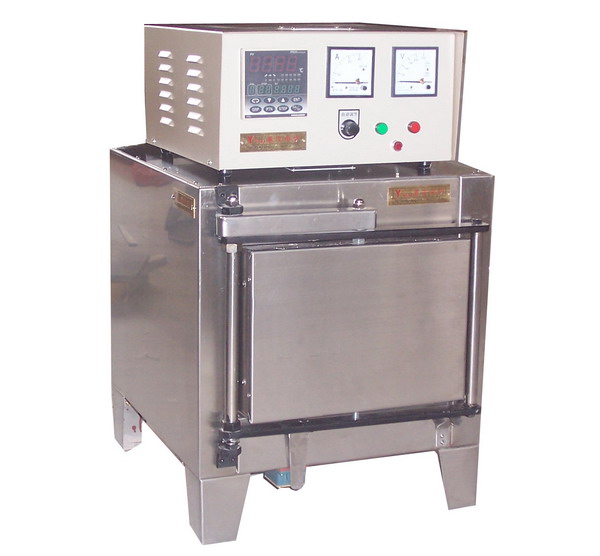

| 本系列电阻炉适用于学院实验室、研究所、工厂企业等作金相分析、金属热处理以及玻璃烧制等用。 |
|
|
| Performance: |
加热元件为电阻丝，最高使用温度1050℃或1200℃
承载大，在热处理环境比较差的环境下作周期性使用，炉膛耐磨性好 |
|
|
| Technology Data: |
| Model | Volume
L | Inner Dimensions
L*W*H mm | Voltage
V | Power
kw | Temp Rise
min | Power Loss
kw | Outer Dimensions
L*W*H mm | Weight
kg | | SX2-2.5-10 | 2 | 200*120*80 | 220/1 φ | 2.5 | ≤50min | ≤0.6 | 540*360*440 | 35 | | SX2-4-10 | 7 | 300*200*120 | 220/1 φ | 4 | ≤60min | ≤1.0 | 650*440*520 | 55 | | SX2-8-10 | 16 | 400*250*160 | 380/3 φ | 8 | ≤70min | ≤1.5 | 800*520*590 | 115 | | SX2-12-10 | 30 | 500X300X200 | 380/3 φ | 12 | ≤80min | ≤2.4 | 930*620*730 | 180 | | SX2-20-10 | 80 | 500X400X400 | 380/3 φ | 20 | ≤100min | ≤5.0 | 1050*720*1100 | 240 | | SX2-30-10 | 160 | 800x500 x400 | 380/3 φ | 30 | ≤120min | ≤8.0 | 1350*820*1100 | 280 | | SX2-2.5-12 | 2 | 200*120*80 | 220/1 φ | 2.5 | ≤70min | ≤0.8 | 540*360*440 | 35 | | SX2-5-12 | 7 | 300*200*120 | 220/1 φ | 5 | ≤75min | ≤1.6 | 650*440*520 | 55 | | SX2-10-12 | 16 | 400*250*160 | 380/3 φ | 10 | ≤80min | ≤2.4 | 800*520*590 | 115 | | SX2-15-12 | 30 | 500X300X200 | 380/3 φ | 15 | ≤85min | ≤3.6 | 930*620*730 | 180 | | SX2-24-12 | 80 | 500X400X400 | 380/3 φ | 24 | ≤100min | ≤7.5 | 1050*720*1100 | 240 | | SX2-36-12 | 160 | 800X500X400 | 380/3 φ | 36 | ≤130min | ≤10 | 1350*820*1100 | 280 |
|
